LightSound acoustic lighting panel

Levertijd: 4-6 weeks

€859,00excl. btw

€1.039,39 incl. btw

Variant

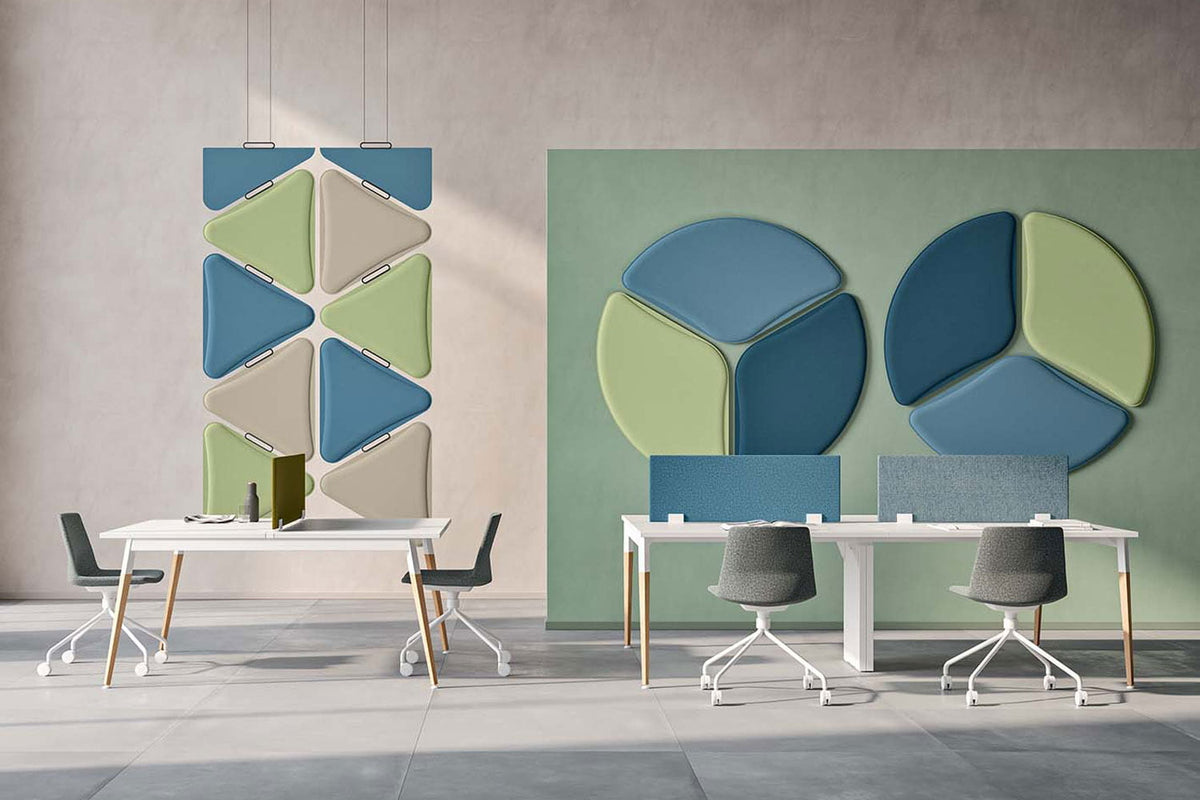

LightSound combines two things that are both needed in an open-plan office: light above the workstation and damping of the reverberation around it. The system alternates Easylight LED modules with Cloak acoustic panels, so you hang one fitting instead of a separate lamp and panel. The panels have an acoustic performance of class A, the highest absorption class. Designed by Moreno De Giorgio.

The fifteen configurations

Each configuration has its own shape. Below is the plan of each configuration, so you can see what you are choosing. The name under the drawing is the same as in the selection list above.

On the ceiling

These nine are intended to hang above a meeting or work table; the drawing shows the table with chairs underneath. a is the version without light strip, b the one with a light strip between the panels.

Configuration 1a ceiling: three triangular panels in a row above a rectangular table — 1a ceiling

Configuration 2a ceiling: round shape divided into three segments above a square table — 2a ceiling

Configuration 3a ceiling: two oval shapes, each divided in two, above a table — 3a ceiling

Configuration 4a ceiling: two curved panels with a triangular panel between them — 4a ceiling

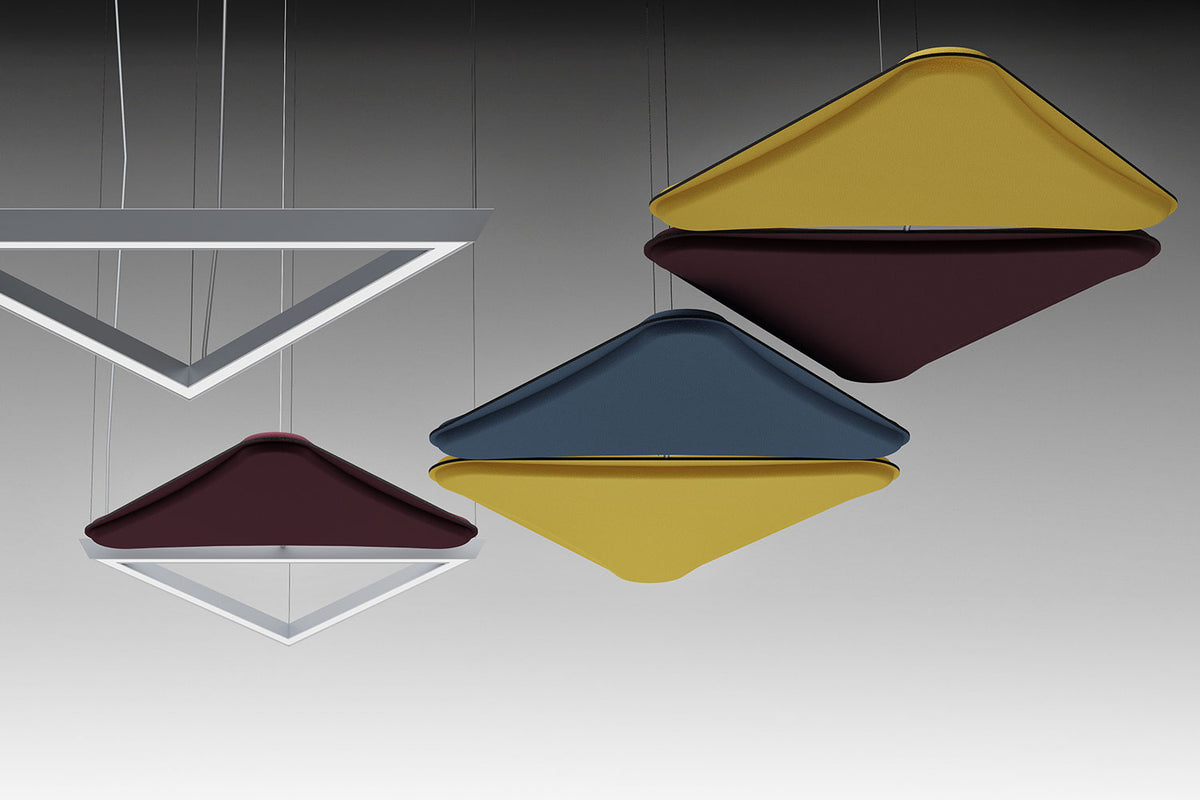

Configuration 1b ceiling: two triangular panels with a light strip between them — 1b ceiling with strip

Configuration 2b ceiling: round shape in three segments with light strips between them — 2b ceiling with strip

Configuration 3b ceiling: two oval shapes with light strips between the panels — 3b ceiling with strip

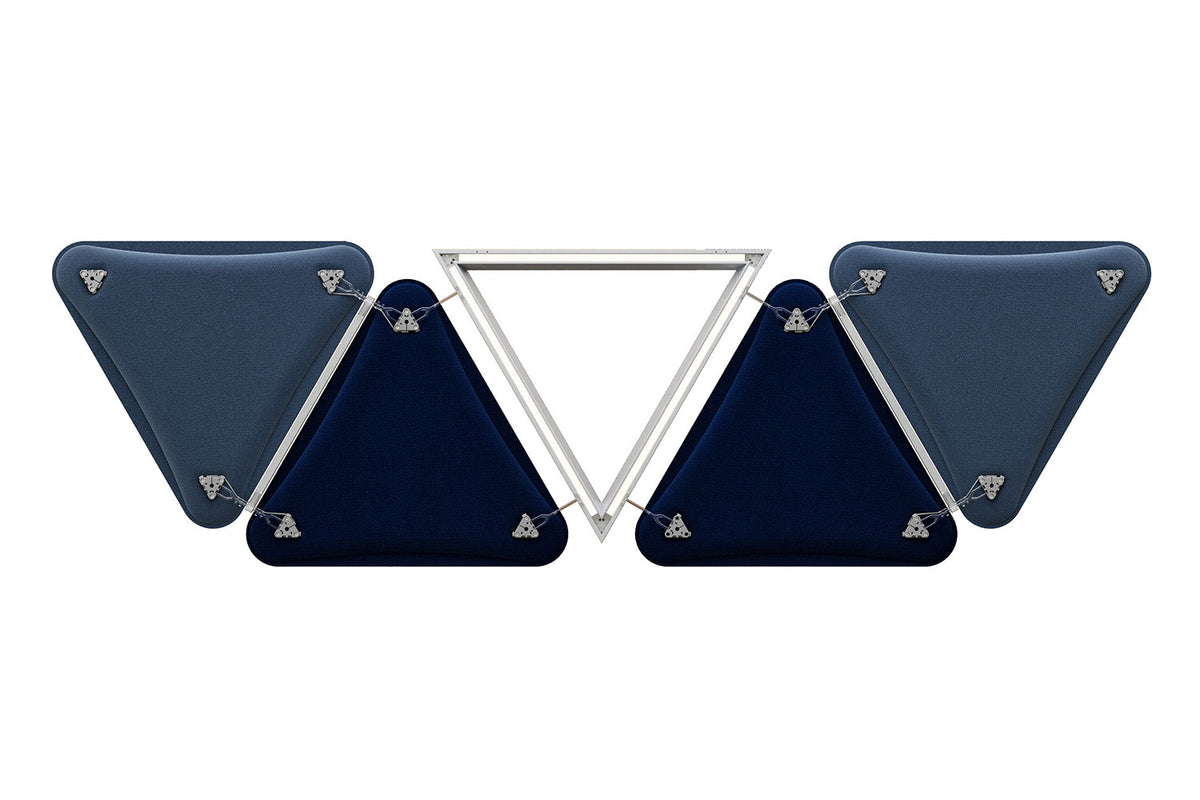

Configuration 4b ceiling with down light: curved panels around a central light module — 4b down light

Configuration 4b ceiling with up-down light: curved panels around a central light module — 4b up-down light

On the wall

Six configurations. Here a, b and c do not stand for with or without light strip, but for three different shapes.

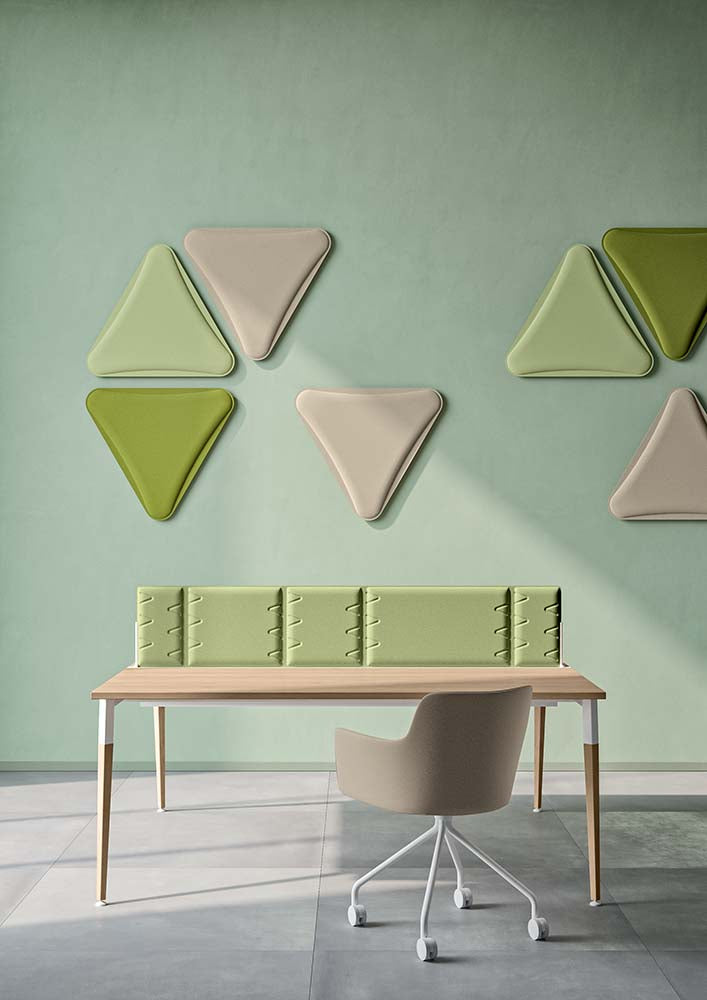

Configuration 1a wall: closed hexagon of six triangular panels — 1a wall
hexagon

Configuration 1b wall: hourglass shape of four triangular panels — 1b wall
hourglass

Configuration 1c wall: horizontal zigzag band of four diamond-shaped panels — 1c wall
zigzag band

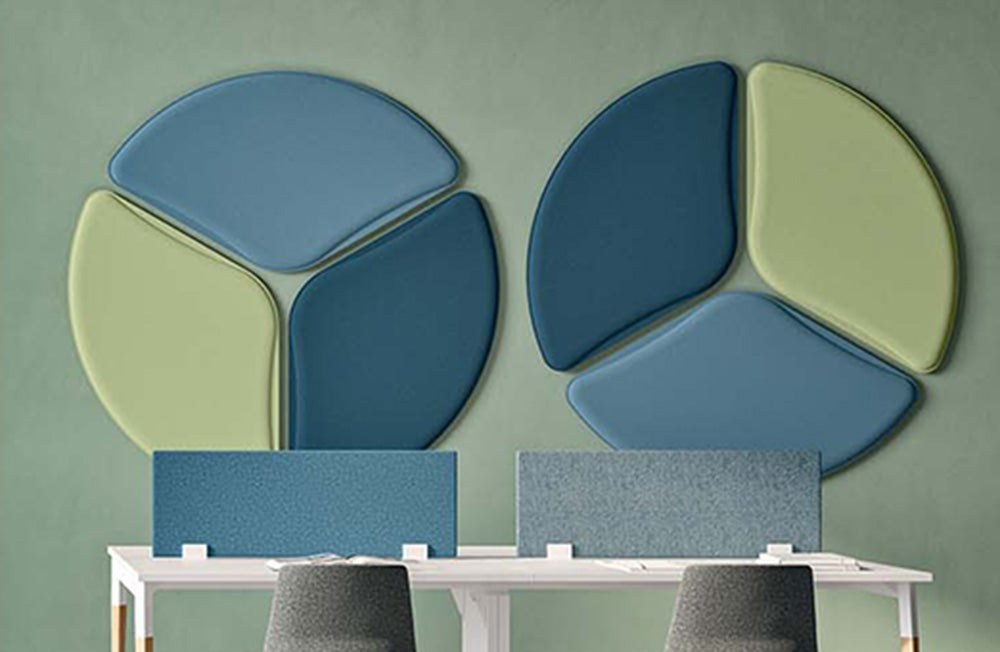

Configuration 2 wall: round shape divided into three segments — 2 wall

Configuration 3 wall: two oval panels, each divided in two — 3 wall

Configuration 4 wall: two curved, comma-shaped panels facing each other — 4 wall

The LED profile

The price shown is for the profile in aluminium, the standard version. The profile is also available in white. The extra cost for this is calculated per light module, so how much extra you pay depends on the number of modules in the chosen configuration; we will provide that amount on request.

Aluminium

White

The panels

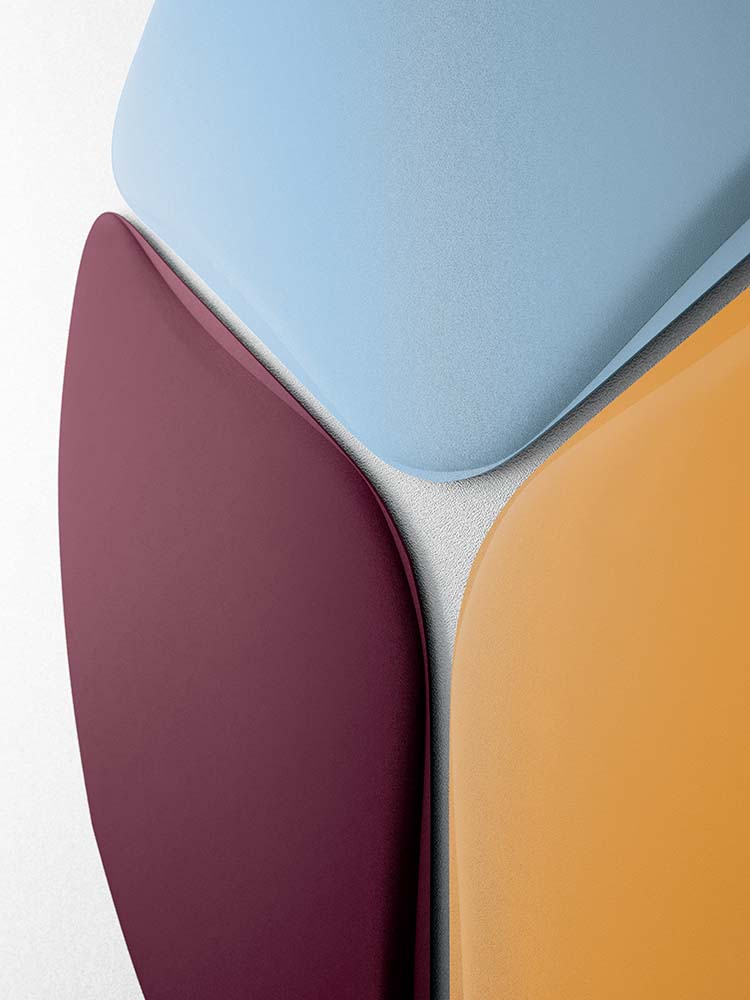

The Cloak panels are upholstered in fabric group B01, fire class A, in eight colours: 009, 011, 012, 013, 018, 019, 023 and 222. The colour does not affect the price; you let us know after ordering.

Application

Open-plan offices, meeting rooms and hospitality: anywhere both lighting and sound damping are needed and a suspended ceiling is not an option or not desired. The cable tray is integrated.

Specifications

Acoustic panel Cloak: triangular, 820 x 1437 x 40 mm, upholstered in fabric
LED module Easy(light): 11.6 W, 1750 lm, 3000 K, CRI 80, on/off, anodised aluminium
LED module Triangle downlight: 31 W, 4650 lm, 3000 K, CRI 90, on/off
LED module Triangle up/downlight: 49 W, 7350 lm, 3000 K, CRI 90, on/off
Installation: on the ceiling or on the wall

Delivery

Designed by Moreno De Giorgio, made in Italy. Delivery time 4 to 6 weeks. All prices are excluding VAT.

Garantie	5 years
